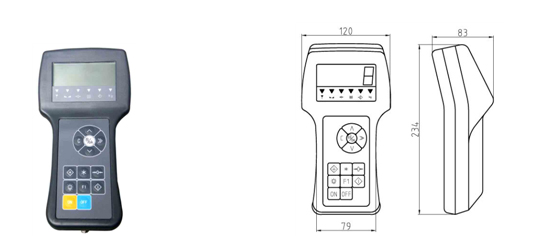

28 Wireless weighing Indicator
●Adopts ∑-Δ A/D conversion technology.
●Keyboard calibration, simple operation.
●Battery charger with several protection modes to extend life of rechargeable battery.
●Handset design, ABS plastic housing.
●LCD display with EL low-power backlight.
●Adopt SMT technology, reliable and high quality.
●Records can be accumulated and searched.
●With rechargeable 4.8V/2.8AH battery for indicator, no memory. AD with power supply of DC
6V/4AH Ni-H battery.
●Power saving mode, indicator will turn off automatically after 30minutes with no operation.
|
Display |
6 digits LCD with backlight |
|
Wireless Distance |
Up to 200m without obstacles |
|
Radio Frequency |
433MHz |
|
Signal input range |
-3mV～15mV |
|
Load cell connection |
4 wire technique |
|
Load cell excitation |
DC 5V |
|
Filtering |
Low, Medium or High selectable |
|
Resulation |
2000 to 3000 divisions standard(up to 15,000 available) |
|
Zero Range |
Auto/Manual setting, from 4% to 100%. |
|
Tare Range |
100% F.S. |
|
Overload Indication |
100% F.S. + 9e |
|
Max. Safety Load |
125% F.S. |
|
Ultimate Load |
400% F.S. |
|
AD Battery |
DC 6V/4Ah rechargeable Ni-H battery |
|
Indicator Battery |
4.8V/2.8Ah rechargeable Ni-H battery |
|
Battery charger |
Input: AC100-240V 50/60Hz Output: 850mA |
|
Operating Temperature Range |
- 20℃ ~ + 50℃ |
|
Operating Humidity |
≤85% RH under 20℃ |
