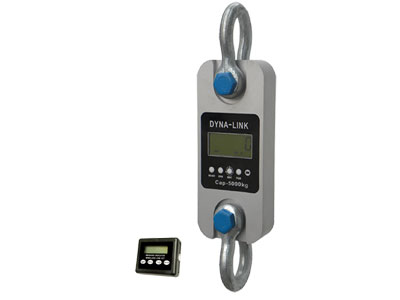

AL-W1 Wireless Dynamometer
◆Profile: AL-W1 wireless dynamometer is an extremely well-built instrument for industry use ,as a standard wireless tool offer universal applications,the indicator 18 have USB port, Communicate with PC, Solve many laptops without serial port problem. AL-W1 wireless dynamometer is microprocessor controlled for high precision accuracy, calibration is easier with Palm size 18 indicator.
◆Body protection: Aluminum and alloy steel capacities are powder coated.
◆Accuracy: 0.05% for 1-50t, 0.1% for above 50t capacity.
◆Units: Units are clearly display on the screen, available in the following measurment reading: kilograms(kg), short Tons(t) pounds(lb), Newton and kilonewton(kN).
◆Shackles: High tension industrial standard G2130 anchor shackle bows, galvanized finish.
◆Gravity regulation: The acceleration of gravity can be regulated through indicator according to different places value.
◆Functions: wireless indicator with many functions: Zero, tare, Low battery warnings, peak hold, overload warning. User calibration(with password).
◆Set-Point: Two user programmable Set-Point can be used for safety and warning applications or for limit weighing.
◆Package: Packed with carry case, easy to bring.
◆Indicator key: 4 local mechanical keys:”ON/OFF”,”ZERO”,”PEAK” and ”Unit Change”.
Body display |
25mm (1’’) 5digits LCD with backlight |
Indicator display |
12mm(0.5’’) 5digits LCD with backlight |
Power on zero range |
20% F.S. |
Manual Zero Range |
4% F.S. |
Tare Range |
20% F.S. |
Stable Time |
≤5seconds |
Overload Indication |
100% F.S. + 9e |
Max. Safety Load |
125% F.S. |
Ultimate Load |
400% F.S. |
Battery Life |
≥50 hours |
Body Battery |
“LR6(AA)”size alkaline batteries. 1.5Vⅹ3 |
Indicator Battery |
USB power supply, lithium battery optional |
Operating Temp |
- 10℃ ~ + 50℃ |
Operating Humidity |
≤85% RH under 20℃ |
Wireless Distance |
Min. 80m(default) [200m(optional)] |
Wireless Frequency |
2.4GHz(default),433MHz,860MHz(optional) |
MODEL |
Max. capacity(kg) |
Min. weigh(kg) |
Division(kg) |
Total dispay counts (n) |
AL-W1-01 |
1000/2200 |
10/20 |
0.5/1 |
2000 |
AL-W1-02 |
2000/4400 |
20/40 |
1/2 |
2000 |
AL-W1-03 |
3000/6600 |
20/40 |
1/2 |
3000 |
AL-W1-05 |
5000/1100 |
40/80 |
2/4 |
2500 |
AL-W1-10 |
10000/22000 |
100/200 |
5/10 |
2000 |
AL-W1-20 |
20000/44000 |
200/400 |
10/20 |
2000 |
AL-W1-30 |
30000/66000 |
200/400 |
10/20 |
3000 |
AL-W1-50 |
50000/110000 |
400/800 |
20/40 |
2500 |
AL-W1-100 |
100000/220000 |
1000/2000 |
50/100 |
2000 |
AL-W1-200 |
200000/440000 |
2000/4000 |
100/200 |
2000 |

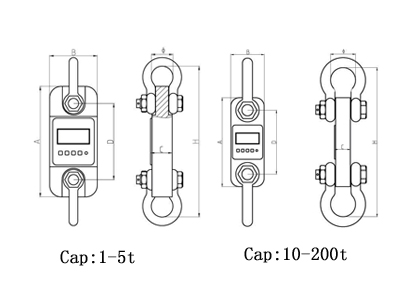

MODEL |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
φ(mm) |
H(mm) |
Material |
AL-W1-01 |
245 |
112 |
37 |
190 |
43 |
335 |
Aluminum |
AL-W1-02 |
245 |
112 |
37 |
190 |
43 |
335 |
Aluminum |
AL-W1-03 |
260 |
123 |
37 |
195 |
51 |
365 |
Aluminum |
AL-W1-05 |
285 |
123 |
57 |
210 |
58 |
405 |
Aluminum |
AL-W1-10 |
320 |
120 |
57 |
230 |
92 |
535 |
Alloy Steel |
AL-W1-20 |
420 |
128 |
74 |
260 |
127 |
660 |
Alloy Steel |
AL-W1-30 |
420 |
138 |
82 |
280 |
146 |
740 |
Alloy Steel |
AL-W1-50 |
465 |
150 |
104 |
305 |
184 |
930 |
Alloy Steel |
AL-W1-100 |
570 |
190 |
132 |
366 |
229 |
1230 |
Alloy Steel |
AL-W1-200 |
725 |
265 |
183 |
440 |
280 |
1380 |
Alloy Steel |
