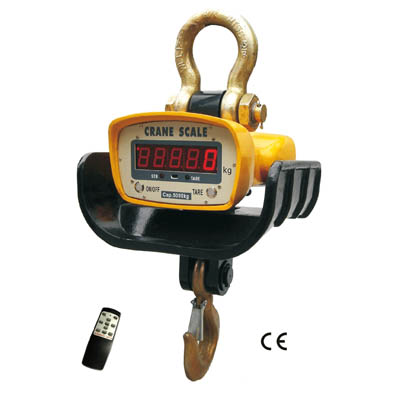

OCS-AH Heat Proof Digital Crane Scale
◆Enclosure:
NEMA 12/IP54 powder coated Foundry Cast Aluminum
◆Multi-weighing units:
Kg, lb are selectable, kg are default unit.
◆Multi-function operation:
Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller.
◆User-friendly design:
Large red 5 digit LED display (digit height 30mm), Battery Operated with low battery indication, Automatic turn off , power-saving function.
◆Gravity regulation:
The acceleration of gravity can be regulated through remote controller according to different places value.
◆Multi options:
RS-232-continuous or on demand data output, user-selectable.
Wireless big screen 3″, 5″, wireless indicator 18, 28, 38, 58 can match with the scale, user-option.
Min distance between scale and high temperature:
1000℃ |
1200℃ |
1400℃ |
1600℃ |
1.6m |
1.8m |
2m |
2.2m |
Accuracy Standard |
According to OIML class III |
Display |
30mm (1.2″) 5digits LCD/LED |
Filtering |
Low, Medium or High selectable |
Units |
Kilograms or Pounds selectable |
Resulation |
2000 to 3000 divisions standard(up to 15,000 available) |
Zero Range |
4% F.S. |
Tare Range |
100% F.S. |
Overload Indication |
100% F.S. + 9e |
Max. Safety Load |
125% F.S. |
Ultimate Load |
700% F.S. |
Battery Type |
Fully sealed Lead-Acid battery, 6V/7Ah |
Battery Life |
≥70 hours |
Adapter |
DC 9V/1000mA |
Operating Humidity |
≤85% RH under 20℃ |
Remote Controller Distance |
Max. 15m |
Battery of Remote Controller |
7# battery, 1.5Vⅹ2 |
Acceleration of Gravity |
Can be regulated, the default value is 9.793 |

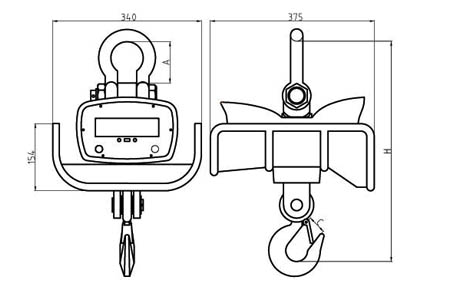

MODEL |
Cap.(kg) |
Resolution(kg) |
A(mm) |
C(mm) |
H(mm) |
N.W(kg) |
G.W.(kg) |
OCS-AH-1 |
1000 |
0.5 |
100 |
40 |
600 |
24 |
27 |
OCS-AH-2 |
2000 |
1 |
100 |
40 |
600 |
24 |
27 |
OCS-AH-3 |
3000 |
1 |
130 |
45 |
720 |
33 |
36 |
OCS-AH-5 |
5000 |
2 |
145 |
60 |
850 |
50 |
55 |
OCS-AH-10 |
10000 |
5 |
170 |
85 |
900 |
75 |
78 |
OCS-AH-15 |
15000 |
5 |
190 |
85 |
920 |
80 |
86 |
