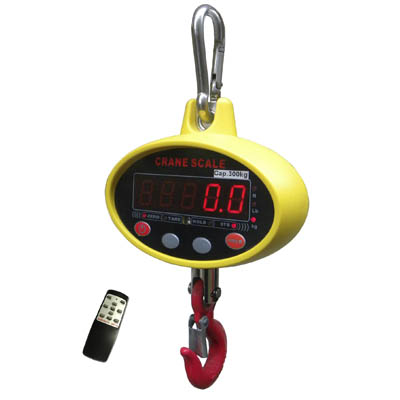

OCS-AF Digital Hanging Scale
◆ Rotating hook: 360°safe rotated hook, convenient to use
◆Enclosure:
NEMA 12/IP54 powder coated Die-Casting Plastic, very light, easy to bring.
◆Multi-weighing units:
Kg, lb, N are selectable, kg are default unit.
◆Multi-function operation:
Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, Battery Operated with low battery indication, Automatic turn off , power-saving function, parameter setting and calibration through infrared remote controller.
◆Gravity regulation:
The acceleration of gravity can be regulated through remote controller according to different places value.
◆Multi options:
RS-232-continuous or on demand data output, user-selectable.
|
Accuracy Standard |
According to OIML class III |
|
Display |
20mm (0.8″) 5digits LCD/LED |
|
Filtering |
Low, Medium or High selectable |
|
Units |
Kilograms or Pounds or Newtons selectable |
|
Resulation |
2000 to 3000 divisions standard(up to 15,000 available) |
|
Zero Range |
4% F.S. |
|
Tare Range |
100% F.S. |
|
Overload Indication |
100% F.S. + 9e |
|
Max. Safety Load |
125% F.S. |
|
Ultimate Load |
400% F.S. |
|
Battery Type |
Fully sealed Lead-Acid battery, 4V/2Ah，AA size battery are selectable |
|
Battery Life |
≥80 hours |
|
Adapter |
DC 4V/500mA |
|
Operating Temperature Range |
- 20℃ ~ + 50℃ |
|
Operating Humidity |
≤85% RH under 20℃ |
|
Remote Controller Distance |
Max. 15m |
|
Battery of Remote Controller |
7# battery, 1.5Vⅹ2 |
|
Acceleration of Gravity |
Can be regulated, the default value is 9.793 |
|
Model |
Cap.(kg) |
Resolution(kg) |
N.W.(kg) |
|
OCS-AF-003 |
30 |
0.01 |
0.95 |
|
OCS-AF-005 |
50 |
0.02 |
0.95 |
|
OCS-AF-01 |
100 |
0.05 |
0.95 |
|
OCS-AF-015 |
150 |
0.05 |
0.95 |
|
OCS-AF-02 |
200 |
0.1 |
0.95 |
|
OCS-AF-03 |
300 |
0.1 |
0.95 |
|
Model |
Cap.(kg) |
Resolution(kg) |
N.W.(kg) |
|
OCS-AF-003 |
30 |
0.01 |
0.95 |
|
OCS-AF-005 |
50 |
0.02 |
0.95 |
|
OCS-AF-01 |
100 |
0.05 |
0.95 |
|
OCS-AF-015 |
150 |
0.05 |
0.95 |
|
OCS-AF-02 |
200 |
0.1 |
0.95 |
|
OCS-AF-03 |
300 |
0.1 |
0.95 |
