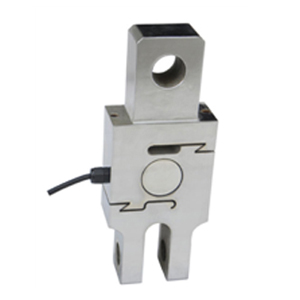

AH-1 Load cell
Dimensions
|
CAP（t） |
A(mm) |
B(mm) |
C(mm) |
D(mm) |
E(mm) |
F(mm) |
G(mm) |
H(mm) |
Φ1(mm) |
Φ2(mm) |
|
3 |
54 |
170 |
90 |
245 |
20 |
79 |
34 |
41 |
23.5 |
20 |
|
5 |
62 |
180 |
100 |
260 |
26 |
89 |
40 |
46 |
26 |
22 |
|
10 |
80 |
244 |
124 |
344 |
30 |
110 |
50 |
50 |
35 |
28 |
● Equivalent to OIML R60 C3 regulations up to 3000d for scales class III
● Protection to IP66
Specifications
|
Output sensitivity |
mV/V |
1.5 | ||
|
Nonlinearity |
%FS |
≤0.025 | ||
|
Hysteresis |
%FS |
≤0.025 | ||
|
Repeatability |
%FS |
≤0.01 | ||
|
Zero balance |
%FS |
≤1.00 | ||
|
Creep （in 30min） |
%FS/30min |
≤0.02 | ||
|
Zero Temp.coefficient |
%FS/10℃ |
≤0.04 | ||
|
Rated output Temp.coefficient |
%FS/10℃ |
≤0.02 | ||
|
Input resistance |
Ω |
385±10 | ||
|
Output resistance |
Ω |
350±3 | ||
|
Insulation resistance |
MΩ |
≥5000 | ||
|
Safe overload |
%FS |
150 | ||
|
Compensated Temp.range |
℃ |
-10～+40 | ||
|
Recommended Supply voltage |
V |
5～15 | ||
|
4-Core shield cable 0.3 m |
Input |
+： Red |
-：Black | |
|
Output |
+：Green |
-：White | ||
|
Shield |
Yellow or Bare | |||
